Turbowent - Inlet Pipe

Chimney cowls are designed to stabilize and increase chimney draft in ventilation and smoke ducts. Chimney cowls are mounted on the top of chimney ducts. Their purpose is to prevent downwind, rain, ice build-up and bird nesting, but most of all they are designed to generate a chimney draft using the force of the wind. Chimney cowls are available in two versions, one, with a flat openable square base, is suitable for flat chimneys, while the openable inlet pipe version is for installation on existing chimney liners.

Turbowent - Inlet Pipe

Features & Benefits

  • Increases chimney draft
  • Prevents reverse draft
  • Extends chimney life
  • Attractive design
  • Reduces fuel consumption
  • Improves the quality of combustion
  • Stainless steel construction
  • Easy installation and inspection
  • Available inlet diameters (mm) 150, 200, 250, 300
  • Inlet pipe version

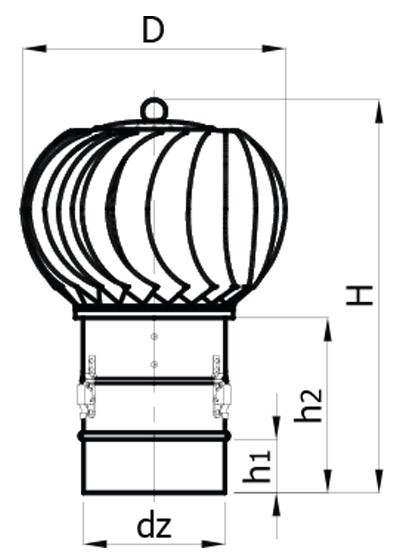

Dimensions

Ø (mm) 150/200/250/300
D ~260/320/380/460
dz 152/201/252,3/301,6
H 402/471/541/635
h1 60/60/60/60
h2 197/197/197/197
Dimension image
Max. working temperature 150 °C
Sound pressure level 26 dB

Our tip

It is best mounted on gravitation based ventilation chimney duct endings, especially on individual and multi storey houses.
