Lomanco ventilation Turbines BIB14 White

Files to download

BIM

DWG

Features & Benefits

Extends the life of the roof structure by exhausting damaging heat and moisture from attic space
Wind powered turbine maximizes ventilation capacity while geared towards going green
Set of turbine, adjustable neck and universal base
14“ neck diameter - moves up to 37% more air than the 12"
Permanently lubricated upper and lower ball bearings that ensure long life and no maintenance
All-aluminium rust-free construction
Rigid spider-type structure
Easy installation
Tested to withstand winds of 110 m.p.h.
Exclusive vari-pitch base adjusts to a roof pitch of 0° - 45°
Includes roof pitch bevel to help determine roof pitch
21 air-foil curved vanes with rolled vane edges to deflect water
Lifetime warranty for residential use

Dimensions

A 356 mm

B 255 mm

C 270 mm

D 460 mm

E 560 mm

F 100 mm

G 350 mm

H 335 mm

I 30 mm

Calculating ventilation

Ventilated area Units needed

0-90 m2 2

> 90 m2 2

> 140 m2 2

> 185 m2 3

> 230 m2 3

Wind speed Exhausted air (m/3)

8 km/h 710 m³/h

13 km/h 1200 m³/h

24 km/h 2250 m³/h

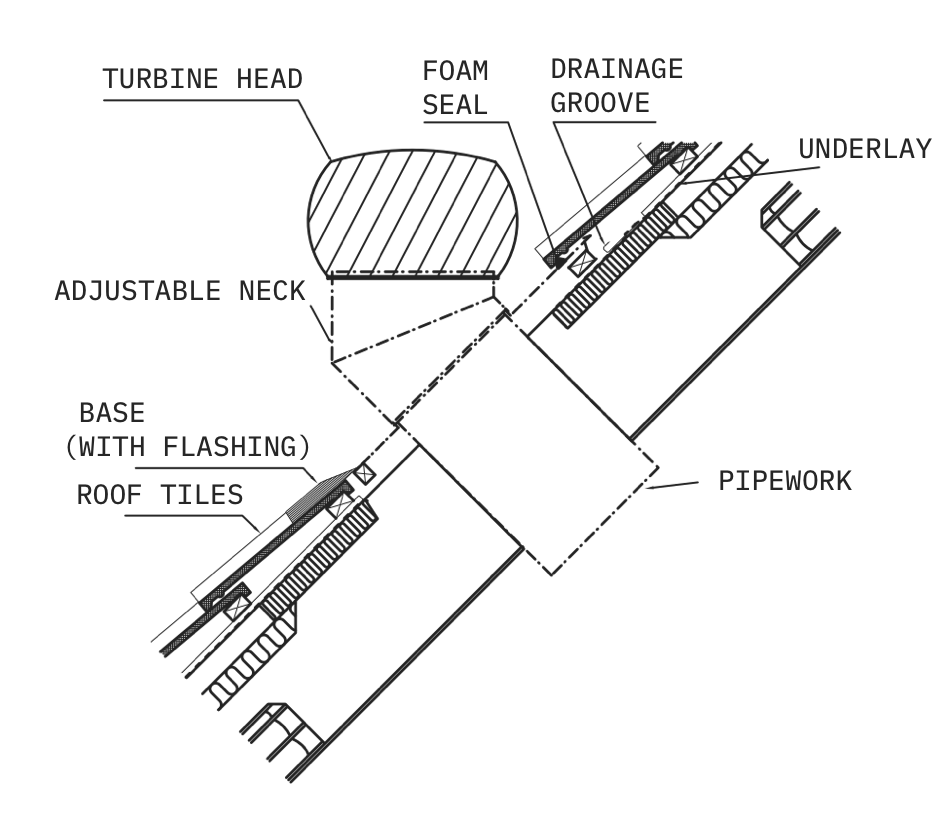

Pitched roof

Flat roof

In the box

Base
Adjustable neck
Turbine head
Roof pitch bevel
Screws
Installation Guide

Our tip

The 14" Lomanco turbine moves 37% more air than the 12".

Lifetime Warranty

All Lomanco products come with a Lifetime Warranty. The warranty is transferable from the original owner to subsequent owners and applies to residential use only. Commercial use is covered by a 15 year warranty. We provide a standard 2 year warranty on all the accessories.

Price list

PDF

Lomanco Price List
File size: 816.57 KB

Download

Want to place an order?
Need help?

SALES DIRECTOR

Phil Brown

phil.brown@aluroofing.co.uk sales@aluroofing.co.uk 01225 302010

technical support

Tomas Sipek

info@aluroofing.co.uk +420 733 306528

Realizations

Installation

Installation Guide

PDF

Installation Guide BIB and BEB turbine
File size: 2.84 MB

Download

Accessories

Electromechanical regulation flaps

Size: all sizes

Universal Base

Size: all sizes

Base for splitter or extension parts

Size: all sizes

Extension Parts 50 cm

Size: all sizes

Splitter

Size: 14 inch

Available sets

The turbines are also available as a part of complete sets for pitched and flat roofs and for installation on ventilation shafts within tower blocks and apartment buildings.
