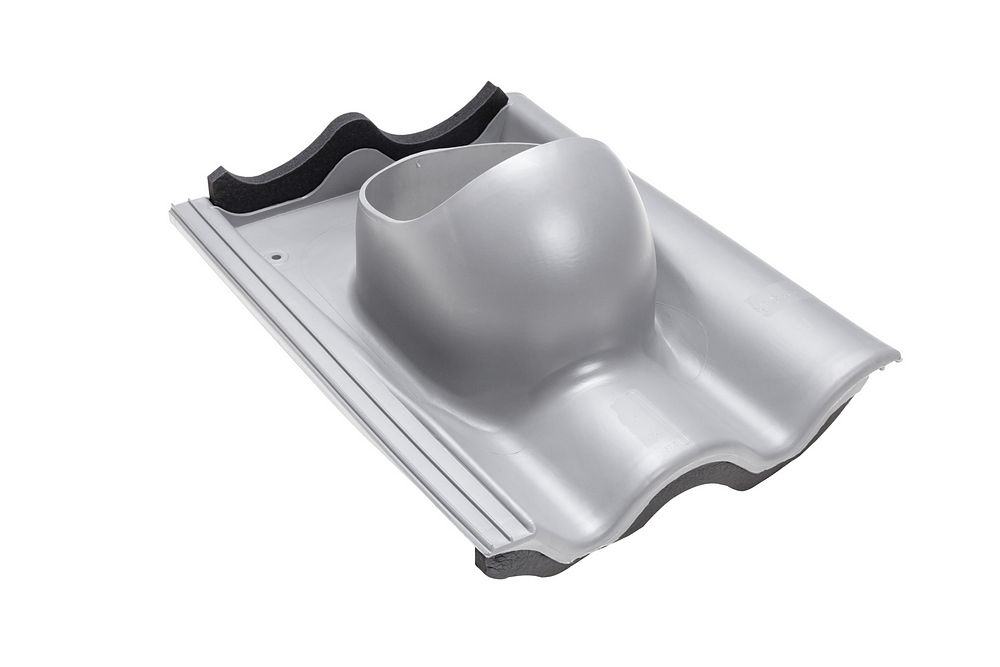

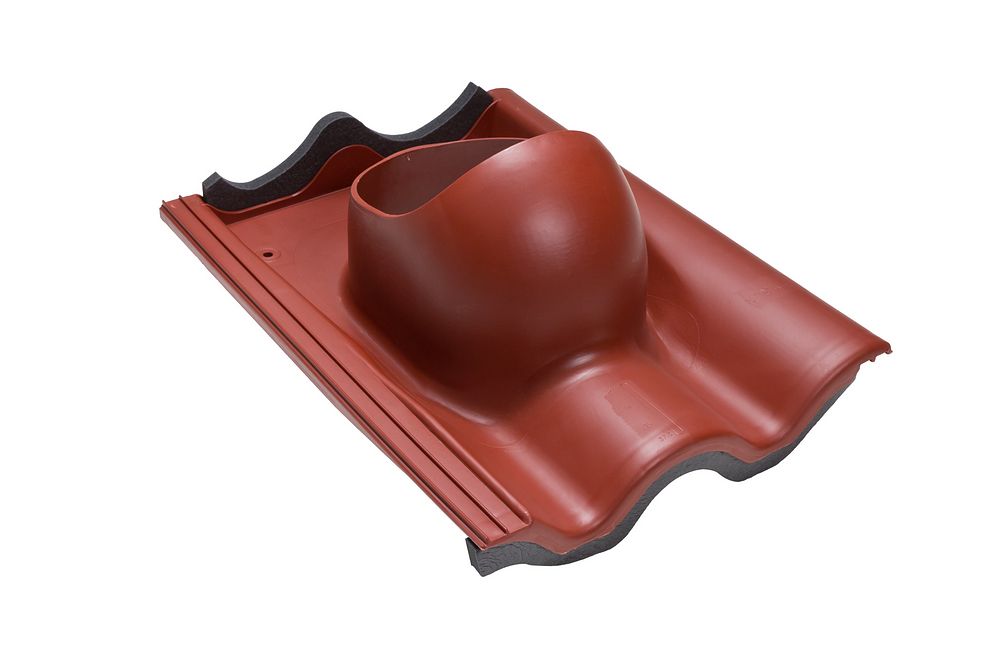

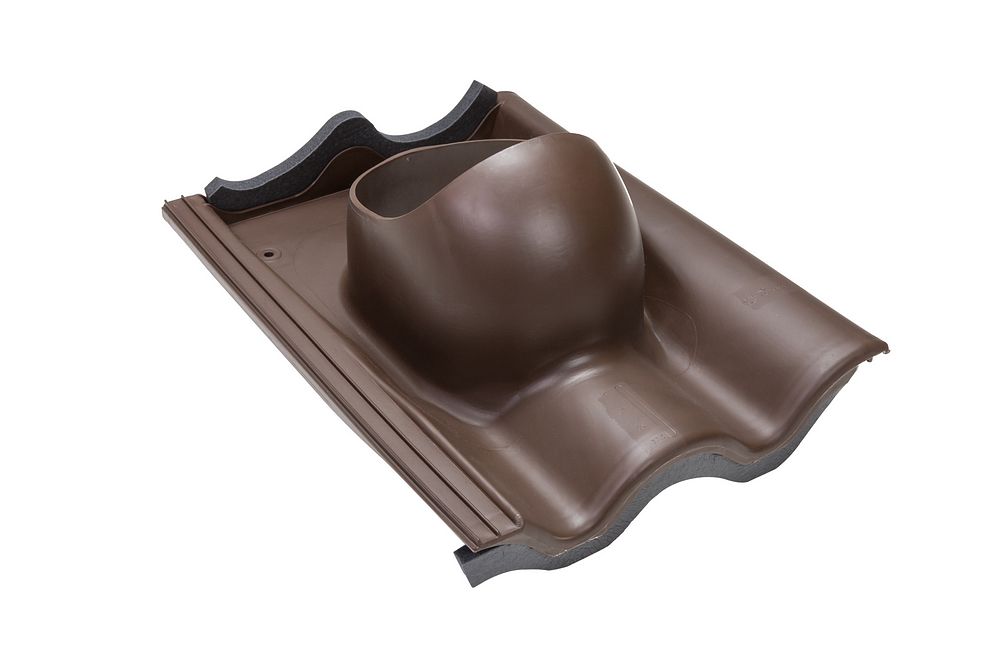

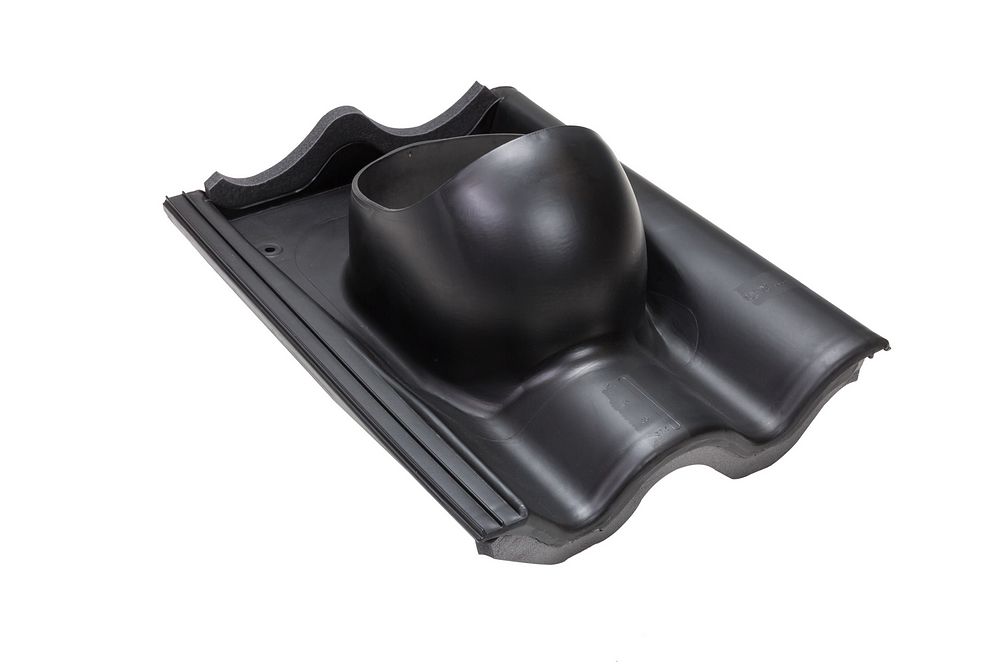

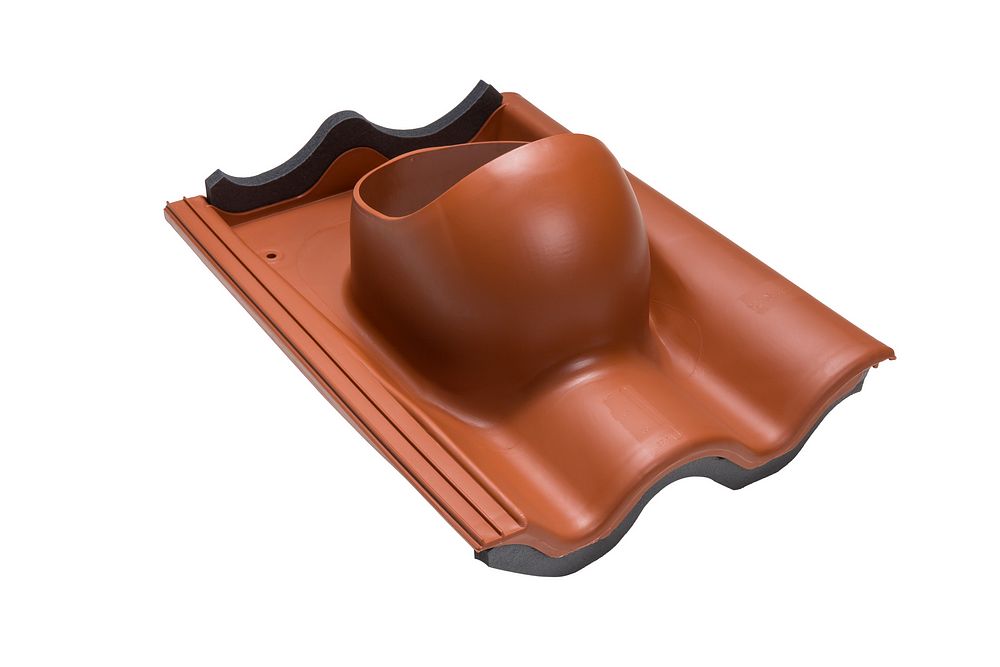

VILPE Tile Pass-Through
The most common concrete tile roofing types. Replaces one 2-wave concrete tile with width of 330 mm and wave height of 27–40 mm.
Product Description

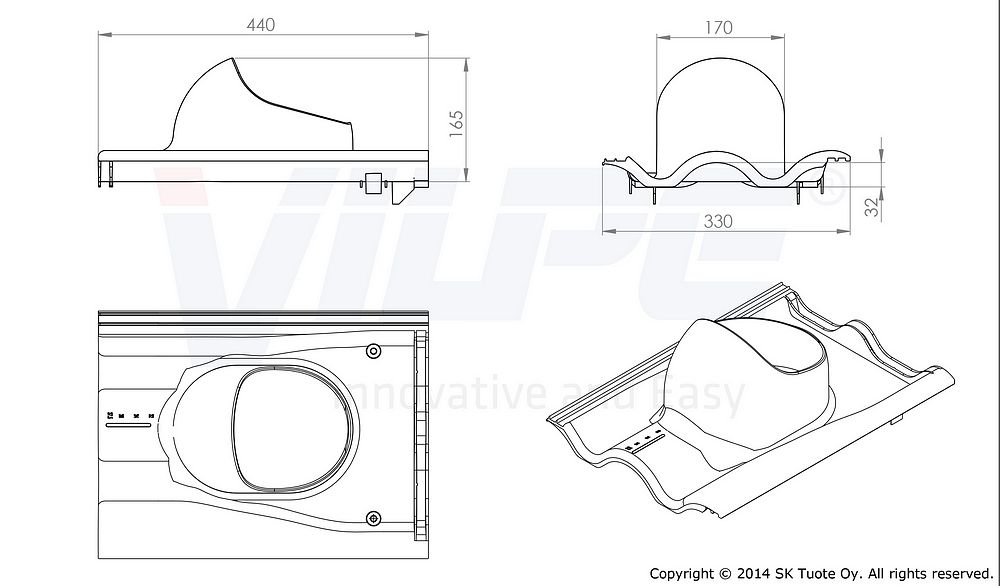

The tile pass-through set is designed for the pass-through of a concrete tile roof for VILPE® P-type pipes and roof fans with a diameter of 110 - 160 mm as well as for aerial sleeves. A tile pass-through set replaces one 2-wave roof tile and it fits the concrete tiles when the width of a tile is 330 mm and height of the wave is 27 - 40 mm. The length of the tile pass-through is 440 mm.
A seal for underlay and screws is included in tile pass-through sets.
In the box
- Pass-through
- Underlay ring
- Screws
- Installation instructions
