VILPE Vittnge 1-Waved Pass-Through

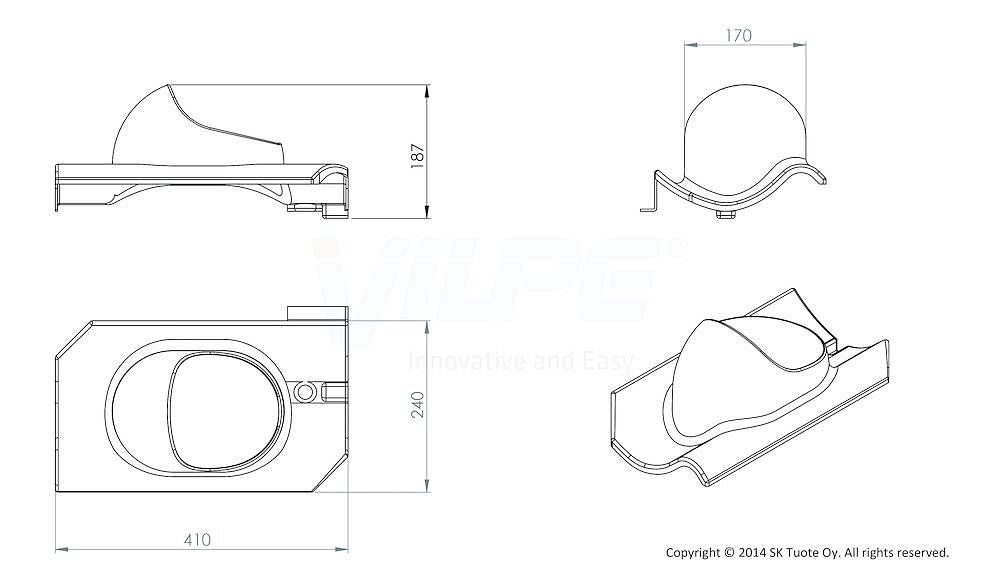

The Vittinge pass-through sets are designed for the pass-through of a clay tile roof for VILPE® P-type pipes and roof fans with a diameter of 110 - 160 mm as well as for aerial sleeves. Vittinge pass-through sets are available for 1- and 2-wave clay tiles. The Vittinge 1-wave pass-through set is suitable for the E13 clay tile, the dimensions of which are 420 x 235 mm. The Vittinge 2-wave pass-through set is suitable for the T11 clay tile, the dimensions of which are 420 x 280 mm.

A seal for underlay and screws is included in the pass-through sets.
