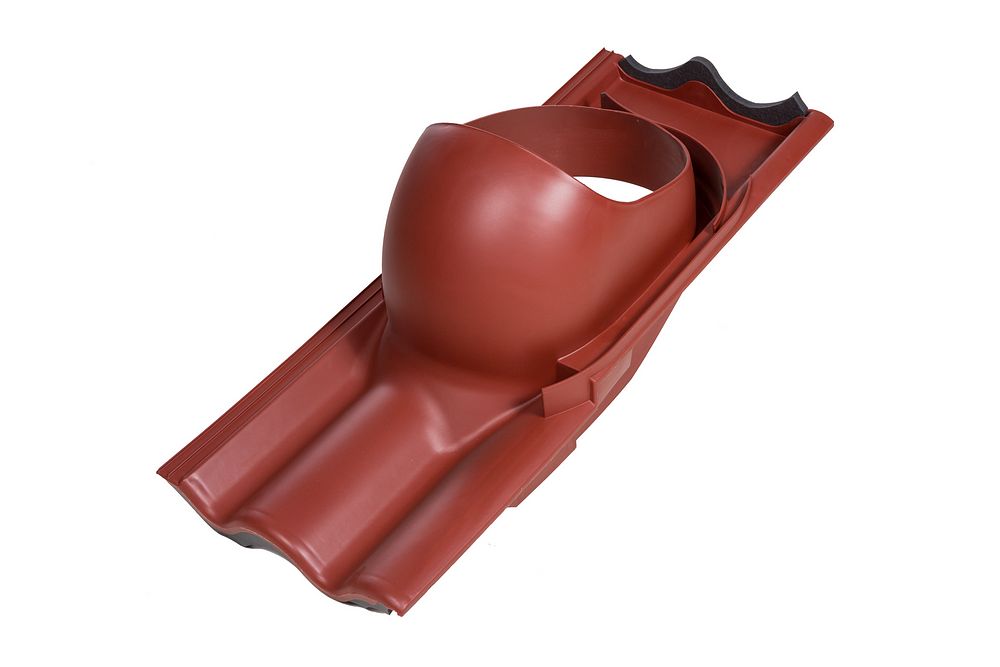

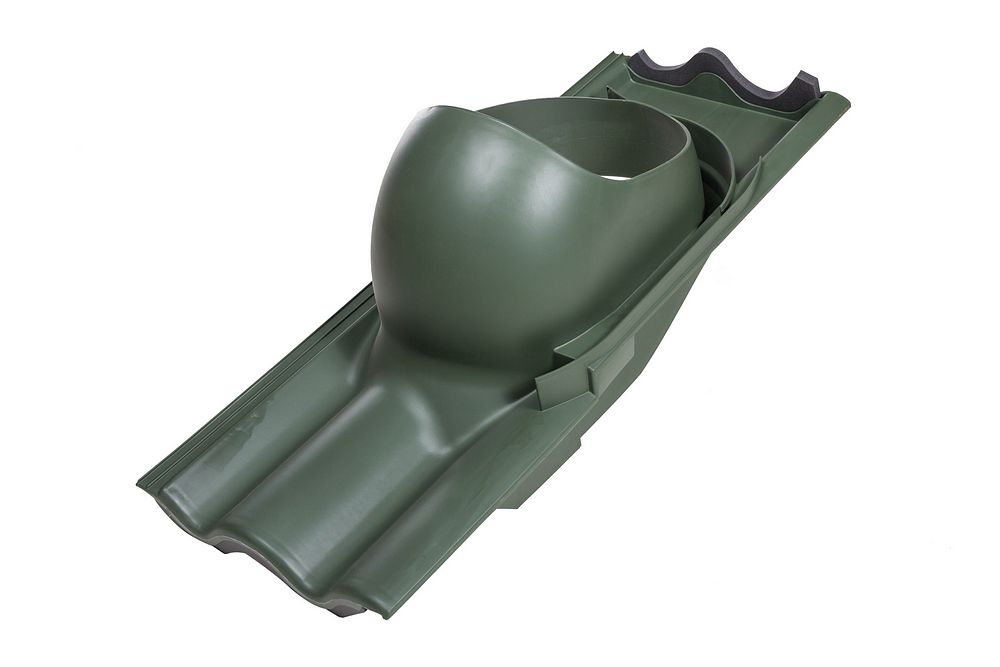

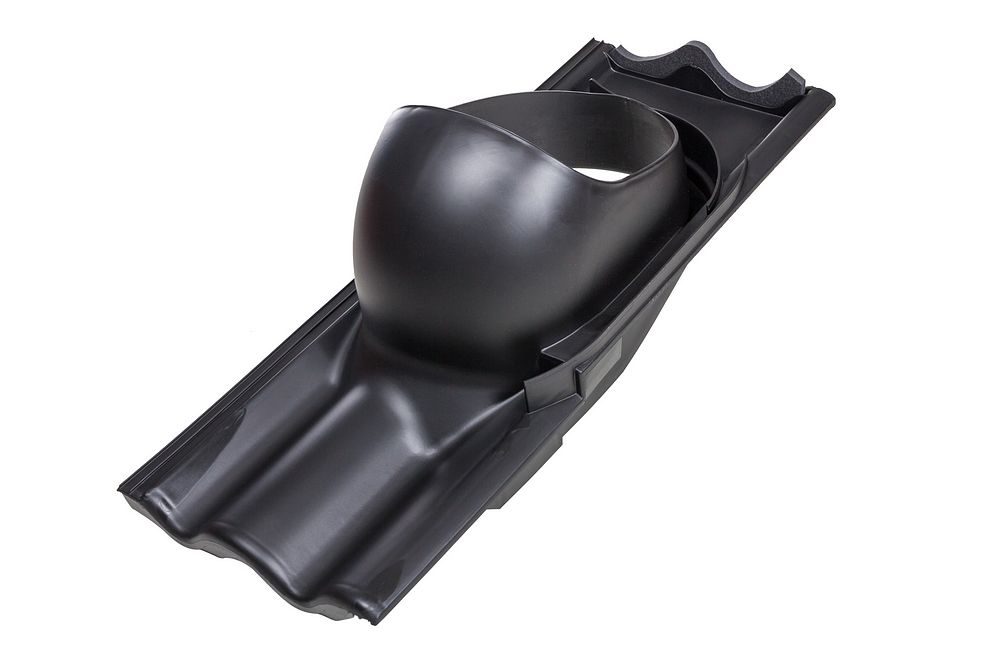

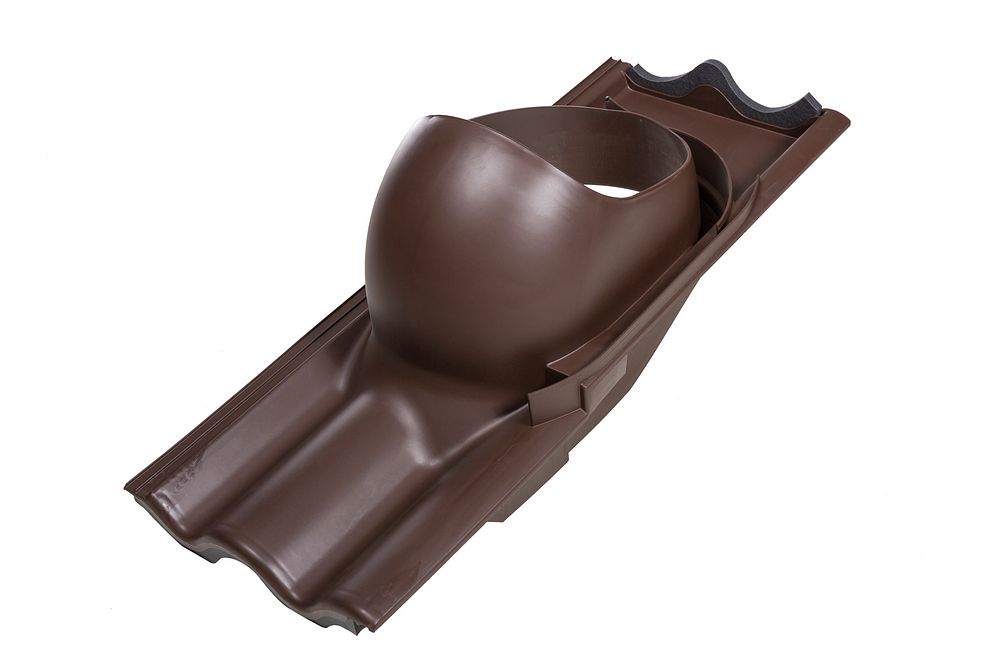

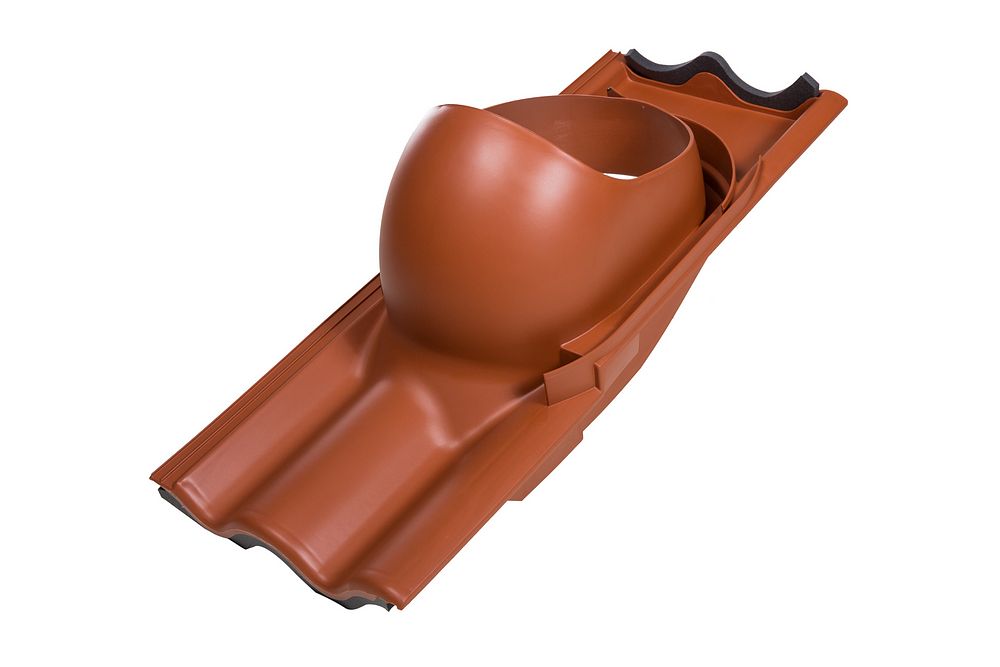

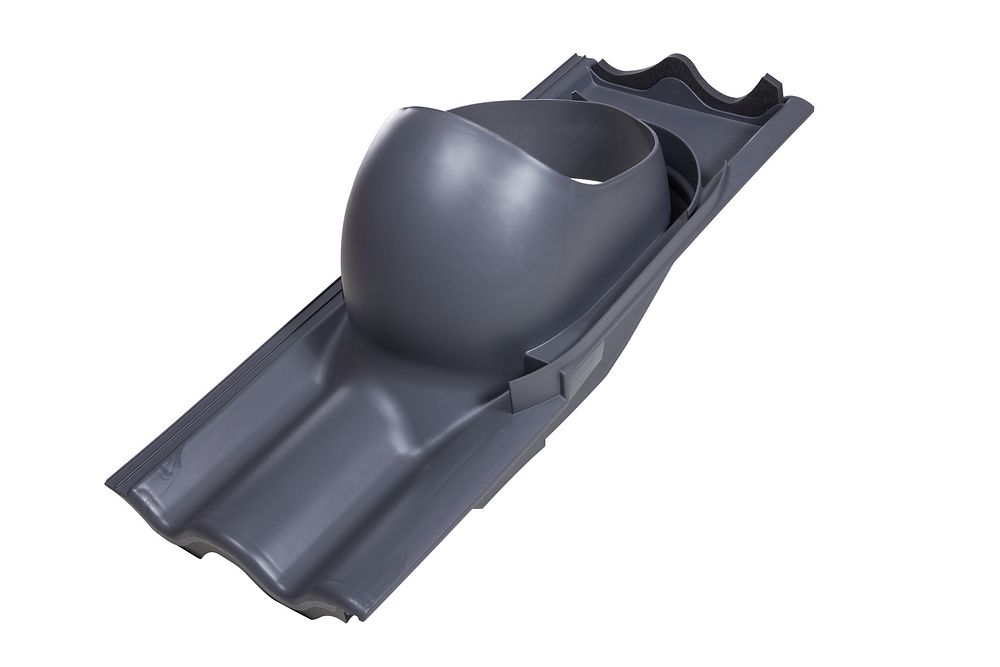

VILPE XL Tile Pass-Through
The most common concrete tile roofing types. Replaces two 2-wave concrete tiles up to width of 330 mm and wave height of 27–40 mm.
Product Description

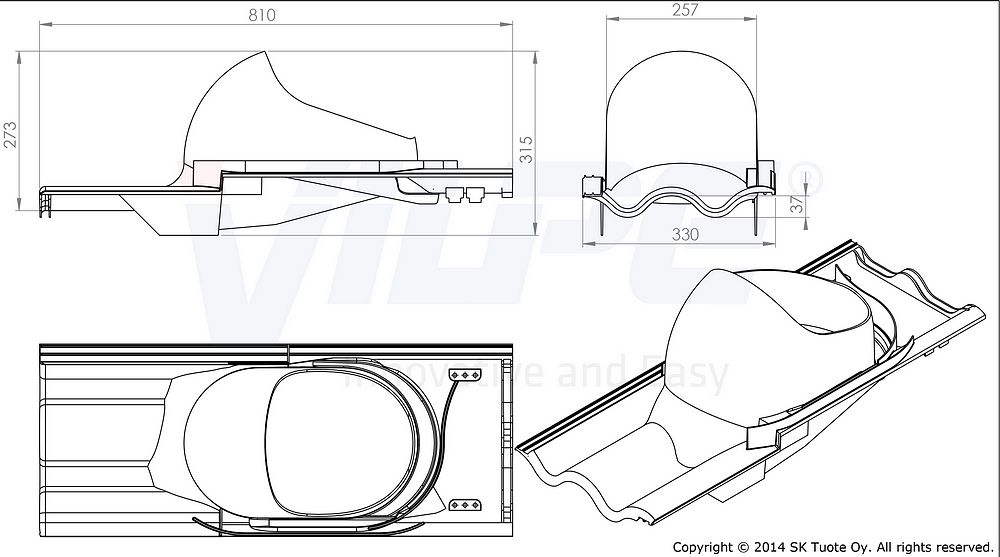

The XL tile pass-through set is designed for the pass-through of a concrete tile roof for VILPE® P-type XL-pipes and roof fans with a diameter of 160 - 250 mm as well as for pipe seals. An XL-tile pass-through set replaces two 2-wave roof tiles and it fits the concrete tiles when the width of a tile is 330 mm and height of the wave is 27 - 40 mm. The length of the XLtile pass-through is 810 mm. A seal for underlay and screws is included in tile pass-through sets.
In the box
- Pass-through
- XL sealing ring
- Screws
